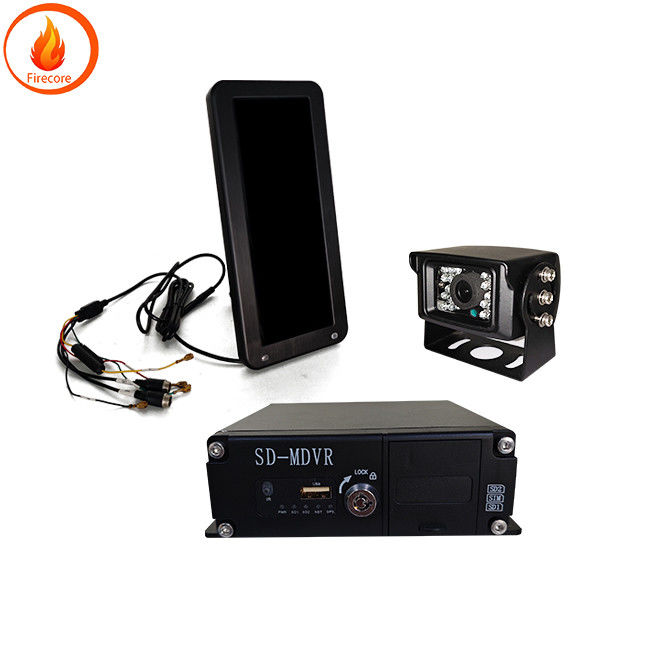

720P HD DVR samochodowy 12,3-calowy wyświetlacz pojazdu

System monitorowania kamer pojazdu 12,3-calowy wyświetlacz

Parametry produktu:
Wyświetlacz:
Rozmiar: 12,3 "
Rozstrzygnięcie: 1920 * 720P
3) Podświetlenie: jasność LED: 850 cd / m2
Kontrast: 800: 1
5. zakres perspektywy: do 85 stopni w dół 85 stopni
Zasilanie: DC9 - 36V
7. sterowanie OSD: ustawienia odtwarzania wideo ustawienia wyświetlania wideo wybór języka ustawienia odwrotne ustawienia systemowe
Moc 5W
Wpis sygnału: 720P / 960P / 1080P / CVBS wpis mieszany
Format pliku: AVI / JPG
Pamięć: obsługuje kartę TF 256 GB
Kompresja wideo: H.264
Rozstrzygnięcie nagrywania: 720P/960P/1080P/CVBS
14 Języki systemowe: chiński angielski
15. Ekran wyświetlania: jednoekran / podwójny ekran / 5 : 5 / 6 : 4 / 7 : 3 Operacja jednoczesnego wyświetlania CHI CH2 1080P
16, sterowanie wyzwalaczem: 1-stronny wyzwalacz
Format wideo: PAL/NTSC automatyczne przełączanie
Kamera HD:
Rozstrzygnięcie: AHD 720P / 960P/1080P
Horyzontalny szeroki kąt: 90 - 150
Wodoszczelność: IP68

Jesteśmy profesjonalnym producentem badań i rozwoju produkcji i monitorowania pojazdów

Nagrywacz wideo samochodowy, kamera samochodowa, kamera USB, wyświetlacz samochodowy, kamera USB

Proszę o kontakt e-mailem:firecore1688@163.com

Terminal zdalnego monitorowania zamontowany w pojeździe
The vehicle mounted remote monitoring terminal  also known as the vehicle mounted DVR   adopts a professional vehicle mounted design that is suitable for automotive power supply and adopts high seismic resistance design   It combines mechanical shock absorption   electronic shock absorption   and software seismic resistance patents   and uses a removable ordinary 2.5 - inch hard drive    It has multiple modes of security monitoring and recording functions   manual   timed   alarm linkage    and fast and convenient query and playback modes  The product has a high - speed USB 2.0 interface and broadband network interface   which facilitates data backup   The vehicle mounted intelligent terminal can be used independently   and can also utilize the extended built - in GPS global positioning system and 3G communication module to construct a wireless video monitoring management system for remote scheduling management and real - time monitoring   As an extended application   in car DVR can also provide functions such as mileage and station name prompts   enriching operational applications   Mileage and station name prompts   in addition to the sound station announcement function   the onboard terminal also provides visual mileage and station name prompts  displaying the progress of the vehicle on the route through the display inside the vehicle   The main functions and architecture of the software platform   The onboard monitoring terminal can independently complete the video recording and recording monitoring function on the vehicle, and can also be expanded and configured into a system with wireless network monitoring and management   improving and enhancing the regulatory ability of the management department on vehicles   and providing more timely monitoring of key areas and routes

The line resembling the head penetrates into the car through the gap of the license plate light   and is connected to the power supply and video extension cable of the reversing light   This type of installation of reversing camera is a popular one nowadays   with a more concealed appearance and easier installation  Another method is to drill holes for installation and embed them into the interior of the bumper   The advantage of this method is that there is no need to drill holes on the metal parts behind the car   Because the bumper is made of plastic   the camera wiring is relatively easy    The third step is to connect the power cord of the camera to the power cord of the rear reversing light    then connect the video cord of the camera to the video extension cable    The other end of the video extension cable is connected to the AV input of the car DVD display    Finally   restore the battery power    start the car    engage reverse gear   and you can see the reverse image on the car display
